JMD Ltd - Products -JL 90 / 150

Product Information

Mechanics

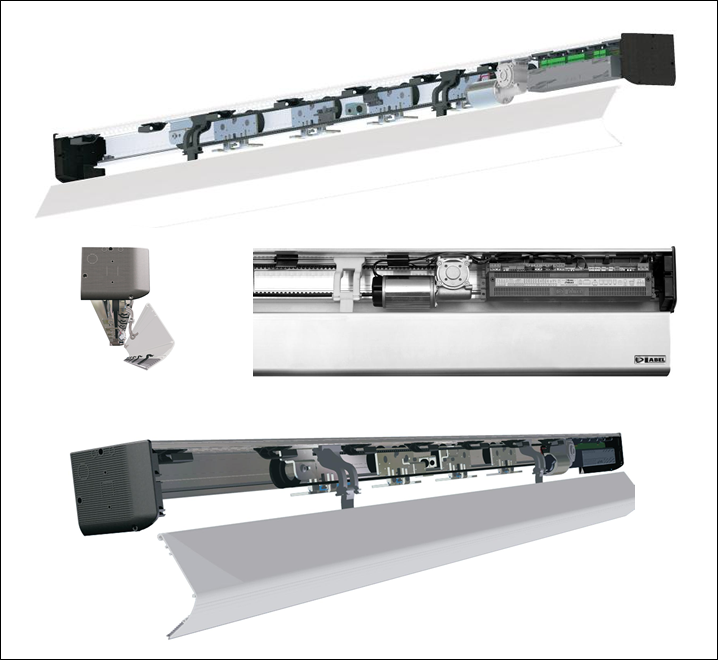

Aluminium transom, rubber noise proof profile with sliding rail. The Operator cover has supports to allow it to be dropped down rather than held up or removed. Double carriage wheel assembles to each leaf. The design and selection of material make it silent running.

Electronics

The JL 90 / 150 has a single control panel which includes a switch mode power supply, a battery monitor and charge circuits, a microprocessor, photocells, activation and side screen safety inputs. An emergency input will open the door at any time. Circuits for electric lock are provided. A facility is provided to interlock the door with an analog input. The operator is normally provided with a 3 position key switch, a 5 position key switch or digital selector is available.

Safety

The microprocessor manages door movements by monitoring all control and safety devices, whilst parameters such as force, auto reverse, opening and closing speeds are all controlled by the JL 90 / 150 software.

Careful design of the unit with the use of advanced components and the experience gained over the years of special applications ensures the JL 90 / 150 will give a very high quality performance.

The very versatile JL 90 / 150 sliding automatic door operator is perfect for hospitals, airports, councils, supermarkets, nursing homes, public buildings, garden centres and toilets where elderly and disabled access is required.

Achieving compliance with the Disability Discrimination Act 1995 (DDA) and the European directive, the state of the art control panel makes the JL 90 / 150 automatic sliding door operator one of the safest and most advanced technical sliding door operator on the market today.

Specification

JL 90	1 Leaf Sliding door	2 Leaf Sliding door	Anti Panic Breakout System
Operating Width	700 - 3000mm	900 - 3000mm	700 - 1200mm
Max. Recommended weight	Max. Kg. 130	Max. Kg. 90 each leaf	Max. Kg 100 each leaf
Opening Speed	Max 0.7 m/s each leaf	Max 0.7 m/s each leaf	Max 0.7 m/s each leaf
Closing Speed	Max 0.6 m/s each leaf	Max 0.6 m/s each leaf	Max 0.6 m/s each leaf
H x D Dimensions	120 x 150mm	120 x 150mm	120 x 150mm
Pause Time	Max. 20 seconds	Max. 20 seconds	Max. 20 seconds
Temperature	-20°C to +50°C	-20°C to +50°C	-20°C to +50°C
Degree of Protection	IP 22	IP 22	IP 22
Max. Transom Length	6500mm	6500mm	6500mm
JL 150	1 Leaf Sliding door	2 Leaf Sliding door	Anti Panic Breakout System
Operating Width	700 - 3000mm	900 - 3000mm	700 - 1200mm
Max. Recommended weight	Max. Kg 200	Max. Kg 150 each leaf	Max. Kg 100 each leaf
Opening Speed	Max 0.7 m/s each leaf	Max 0.7 m/s each leaf	Max 0.7 m/s each leaf
Closing Speed	Max 0.6 m/s each leaf	Max 0.6 m/s each leaf	Max 0.6 m/s each leaf
H x D Dimensions	120 x 150mm	120 x 150mm	120 x 150mm
Pause Time	Max. 20 seconds	Max. 20 seconds	Max. 20 seconds
Temperature	-20°C to +50°C	-20°C to +50°C	-20°C to +50°C
Degree of Protection	IP 22	IP 22	IP 22
Max. Transom Length	6500mm	6500mm	6500mm
